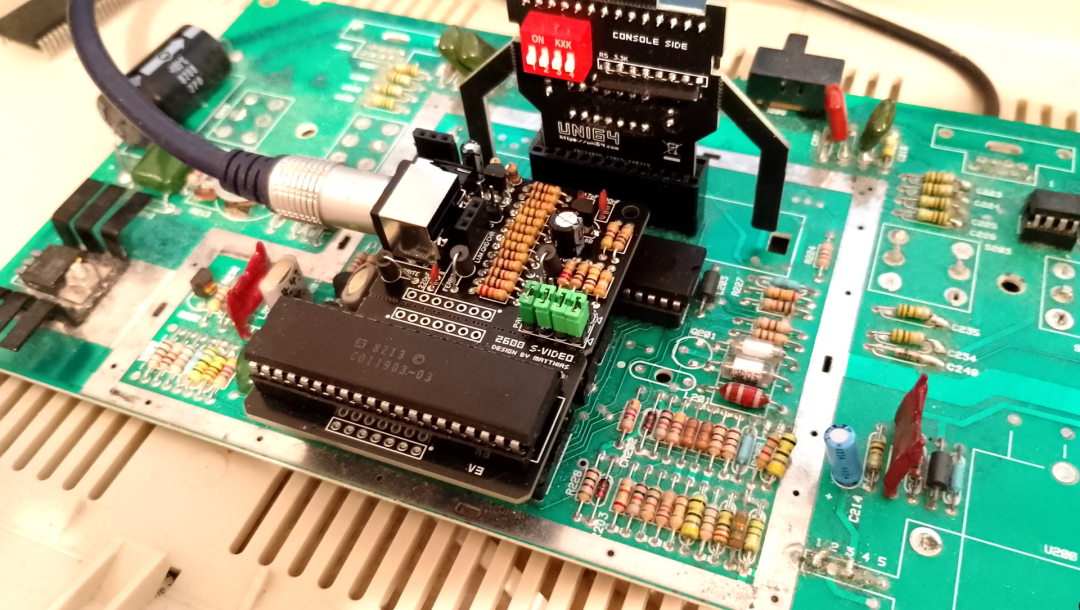

The S-Video board is simply plugged into the TIA socket of the VCS 2600 console with 4 or 6 switches (there is a separate modulator board for the Jr. board).



No other modifications are necessary.



It is possible to choose between PAL and NTSC with 4 jumpers. It is therefore suitable for PAL and NTSC consoles.



The video and audio outputs are in addition to the S-Video and audio sockets also available as plug-in or soldered connectors (LUMA, CHROMA, Ground and AUDIO1, AUDIO2, Ground).







The following PCB boards are supplied (only the bare boards, without components):

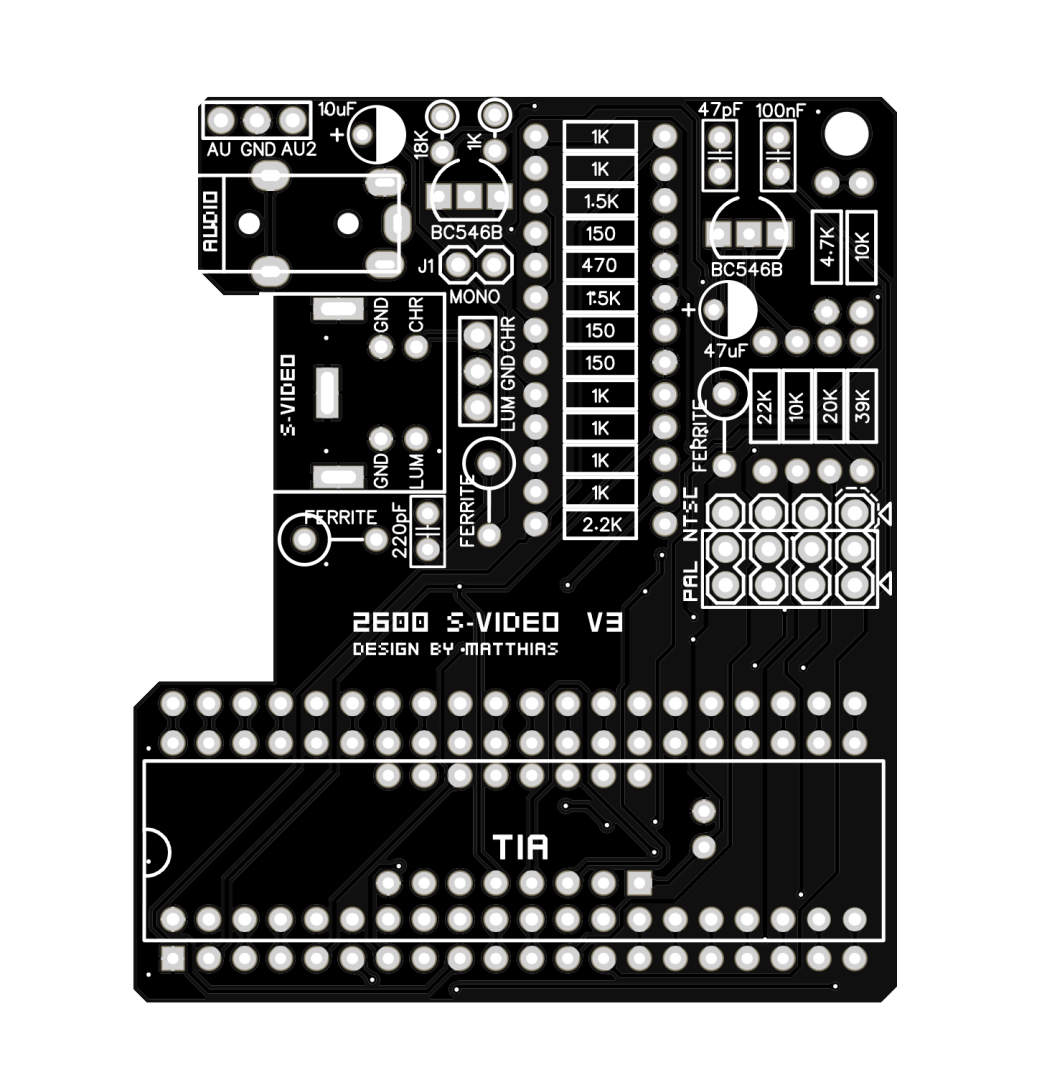

- S-Video Board VCS 2600
